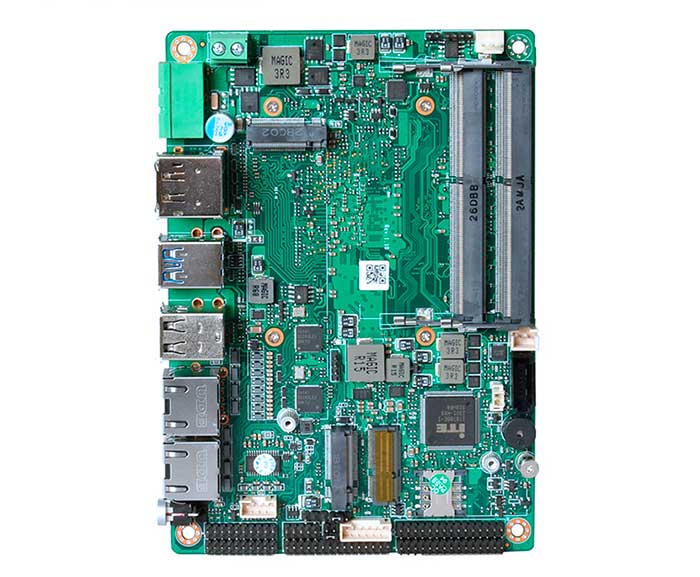

Description :
?Onboard Intel Elkhart Lake J6412 series processor
?2*DDR4 SO-DIMM，MAX 32GB
?2*i226-V LAN Card，Single and dual network options；
?TPM2.0ptional，3*M.2（SSD/WIFI/4G/5G）
?HDMI2.0/DP/LVDS/EDP display output
?DC 9-36V；
?Size：146x102mm
|
Processor system |
Onboard Intel Elkhart Lake series processor |
|
|
EFI BIOS |
|
Memory |
2 DDR4 SO-DIMMs, maximum 32GB |
|
storage |
One M.2 M-Key 2280 (NVMe PCIe 3.0 x4/SATA3.0 protocol) storage interface |
|
|
1 SATA3.0 interface, 2Pin power supply |
|
display |
1 HDMI2.0 interface, supporting 4096x2160@60Hz |
|
|
1 DP1.4 interface, supporting 4096x2160@60Hz |
|
|
LVDS/eDP |
|
Board side I/O interface |
2Pin through-wall terminal, HDMI, DP, power-on button |
|
|
4 USB, 2 RJ45. (6 USB for single network) |
|
Expansion interface/function |
TPM2.0 is optional, but not by default |
|
|
One M.2 E-Key (PCIe+USB2.0 protocol, supporting WIFI module) |
|
\ |
One M.2 B-Key (USB2.0/USB3.0 protocol, supporting 4G/5G module); 1 Micro SIM card slot |
|
|
6 COM row pins, 2x5Pin, spacing 2.0mm |
|
|
2 sets of 4 USB2.0 rows of pins, 2x5Pin, spacing 2.0mm |
|
|
1 set of 8-bit GPIO pin, 2x5Pin, spacing 2.0mm |
|
|
1*3Pin SYS FAN，1*3Pin CPU FAN |
|
Power Supply |
DC 9-36V，30W |
|
work environment |
Working temperature: - 20 ℃~+60 ℃; Working humidity: 5%~90% |
|
|
Storage temperature: - 40 ℃~+85 ℃; Storage humidity: 5%~90% |
|
Operating system support |
Windows10，Windows11，Linux |
|
size |
146x102mm |
|
Net weight |

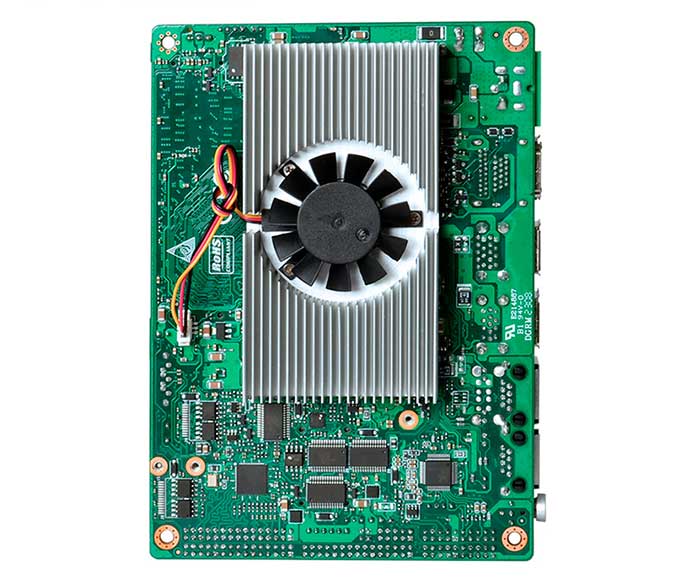

About 120g without radiator, about 200g with radiator |
