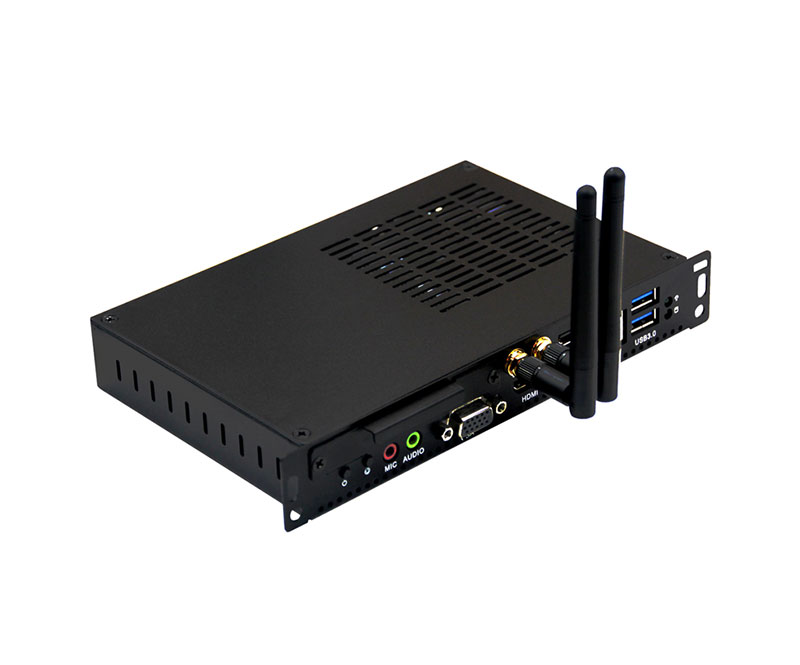

OPS608U

Model : OPS608U

Description :
◆ Integrated Intel 4th generation mobile Haswell/Broadwell-U single-chip CPU;
◆ 1 DDR3L SODIMM 204 Socket;
◆ Provide 1*VGA, 1*HDMI;
◆ Support power-on automatic power-on function, jumper selection;
◆ Single input DC power supply, DC12-19V power supply;
◆ Support OPS extension;
◆ Structure 180*120*30 mm;

Product recommendation

Fanless Industrial Mini PC Intel 12th Gen Alder Lake-N N97 N305 x7425E 3RJ45 Lan 6Com

N-BOX-S6

6th-12th Gen Indusreial Mini PC 6 Ethernet Port Core I3 I5 I7 N150 N100 Pfsense Firewall Mini PC with Fan

N-BOX-S5F

Nano ITX Motherboard 12th 13th Gen Core i3 i5 i7 6 Lan Firewall Industrial PC Mainboard

AD600NA6L

12th 13th Gen IOT Industrial Mini PC EDGE Computing Box

Q-BOX-E10

GN41NA

OPS908S

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen

◆ Integrated Intel 4th generation mobile Haswell/Broadwell-U single-chip CPU;
◆ 1 DDR3L SODIMM 204 Socket;
◆ Provide 1*VGA, 1*HDMI;
◆ Support power-on automatic power-on function, jumper selection;
◆ Single input DC power supply, DC12-19V power supply;
◆ Support OPS extension;
◆ Structure 180*120*30 mm;

Specifications:

Model

OPS608U

size

180*120*30 mm

Processor

Integrated Intel 4th/5 Mobile Haswell/Broadwell-U single-chip CPU

Chipset

Intel single chip

memoryslot

1 DDR3L?SODIMM 204 Socket

network card

Onboard 1 Gigabit NIC?

Audio

?Onboard HDA ALC662

storage device

1*MINISATA supports SSD; 1*SATA3.0 1*SATA_HDD

Color

black

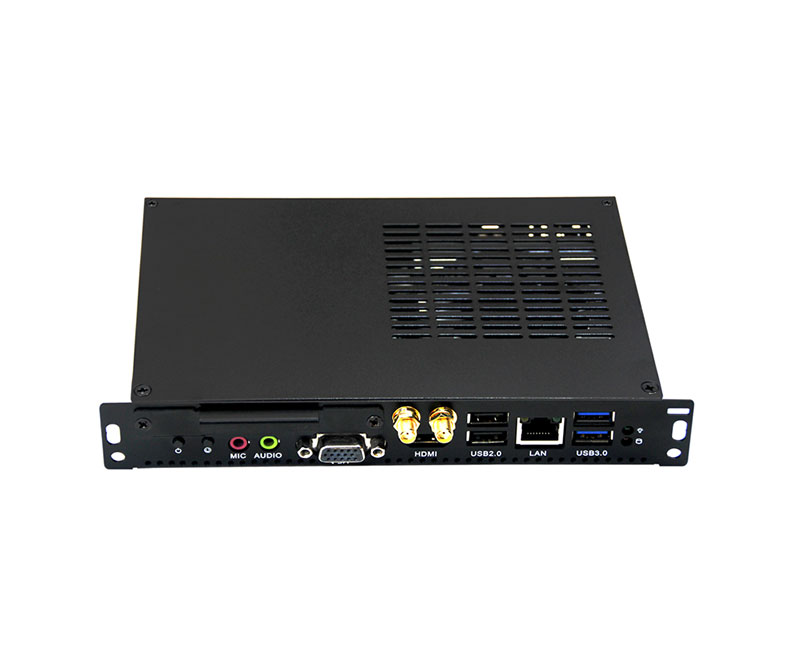

panel interface

1*LAN ?1*HDMI ?1*VGA ?1*DC ?1*MIC-IN ?1*LINE -OUT??2*USB3.0?2*USB2.0 ?2*WIFI Antenna Interface?1*Switch button 1*Reset button 1*Hard disk indicator 1*Power indicator

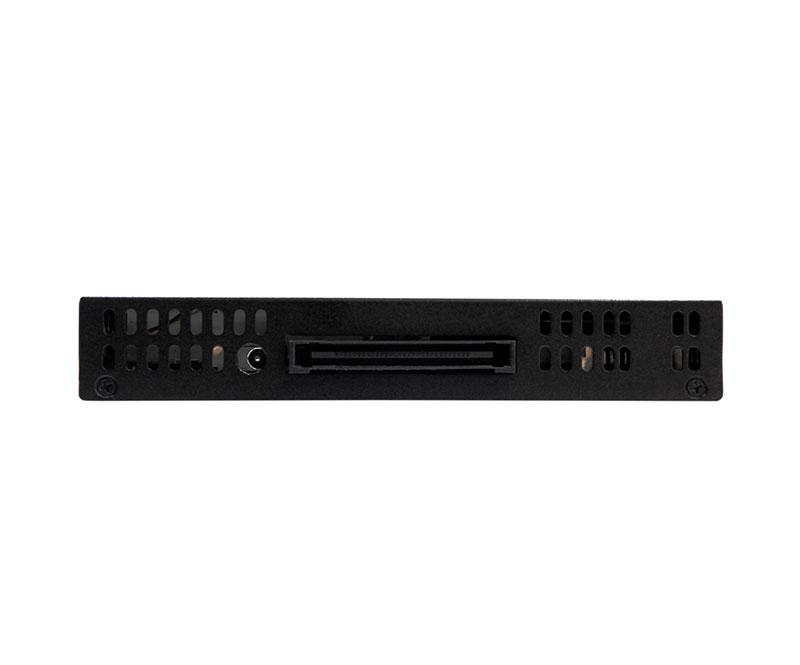

OPS Direct Card Interface

1*LINE-OUT ? ;1*HDMI and 1*DP (choose one)????1*DC ??3*USB ??1 switch button

Standard

1*12V 60W Power Adapter 1*OPS Riser (Optional) 1*WIFI Antenna?

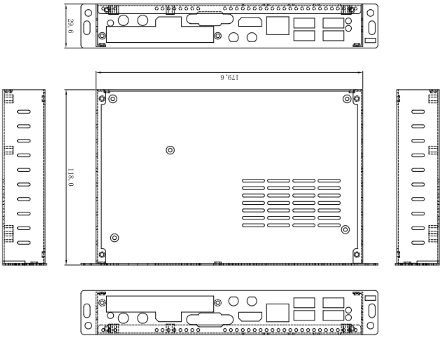

Size ?:

Ordering Information:

Can be used with motherboard model	Description	CPU optional
?OPS80C/OPS90C-I3	IntegrationIntel fourth/fiveMobile Haswell/ Broadwell- U?	Support 4rd/5rd ?Intel? CoreTM i3< /span> Example: I3-4100U, I3- 5010U
?OPS80C/OPS90C-I5	IntegrationIntel fourth/fiveMobile Haswell/ Broadwell- U?	Support 4rd/5rd?Intel? CoreTM i5 ?? ???????For example: I5-4200U, I5-52 00U
OPS80C/OPS90C-I7	IntegrationIntel fourth/fiveMobile Haswell/Broadwell-U?	Support 4rd/5rd?Intel? Core TM i7 such as: I7-4500U, I7-5500U

Packing list:

1*12V5A Power Adapter

1*Host

1*Drive CD

1* User's Guide

Optional Accessories:

product name	Specifications
WIFI module	Long Card/Short Card
SSD	8G/16G/32G/64G/128G
Notebook Hard Drive	320G/500G
Power	12V 5A/12V 7A
