N-BOX-T3

Model : N-BOX-T3

Description :
◆ Compact and lightweight embedded design support for Intel Baytrail-D / I / M series processors;
◆ DDR3 SODIMM 204 Socket Ram socket max support 8gb Ram;
◆Onboard 32/64/128G EMMMC chipset (Optional);
◆ Mini-PCIE socket，support wifi Module，combine with SIM card slot ，support 3G Module(only support USB singal equipment)；
◆ I/O rich Port,Including 2*USB Port/4*Intel I211 lan Card,1*HDMI,18*VGA display connector;
◆ The fanless design, no noise design, stable and efficient;
◆ 12V DC Power supply;

Product recommendation

Fanless Industrial Mini PC Intel 12th Gen Alder Lake-N N97 N305 x7425E 3RJ45 Lan 6Com

N-BOX-S6

6th-12th Gen Indusreial Mini PC 6 Ethernet Port Core I3 I5 I7 N150 N100 Pfsense Firewall Mini PC with Fan

N-BOX-S5F

Nano ITX Motherboard 12th 13th Gen Core i3 i5 i7 6 Lan Firewall Industrial PC Mainboard

AD600NA6L

12th 13th Gen IOT Industrial Mini PC EDGE Computing Box

Q-BOX-E10

GN41NA

OPS908S

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen

◆ Compact and lightweight embedded design support for Intel Baytrail-D / I / M series processors;

◆ DDR3 SODIMM 204 Socket Ram socket max support 8gb Ram

◆Onboard 32/64/128G EMMMC chipset (Optional);

◆ Mini-PCIE socket，support wifi Module，combine with SIM card slot ，support 3G Module(only support USB singal equipment)；

◆ I/O rich Port,Including 2*USB Port/4*Intel I211 lan Card,1*HDMI,18*VGA display connector;

◆ The fanless design, no noise design, stable and efficient;

◆ 12V DC Power supply;

Specifications

? Case	name	N-BOX
	color	Black
	size	12613440.6mm
	material	6063

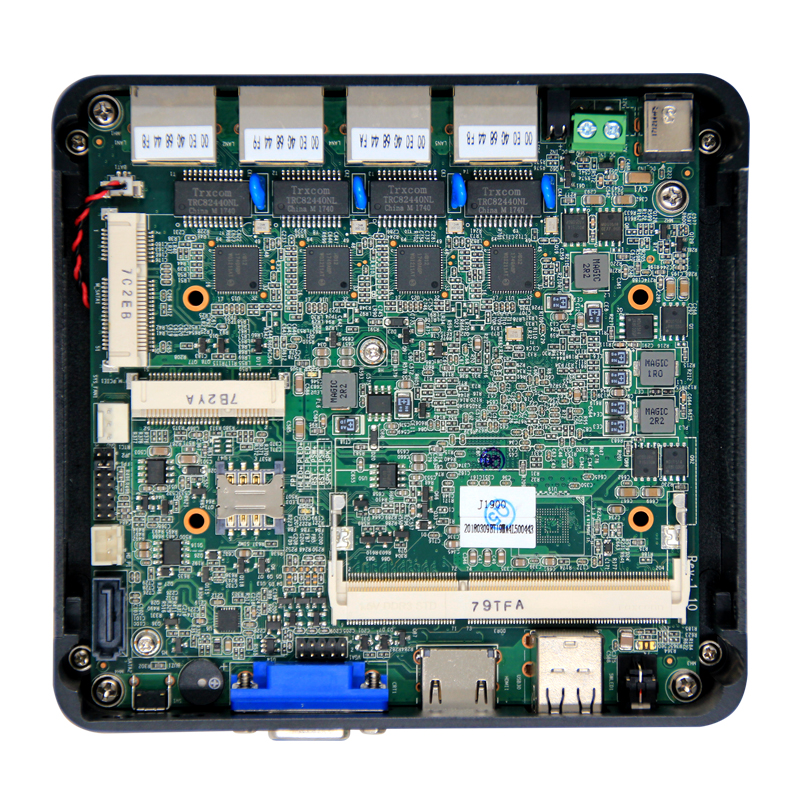

? ? Motherboard	Chipset	Baytrail-I/D/M serial chipset
	CPU	Support Baytrail-I/D/M serial Processor ?(J1900 J1800?E3845 N2806)
	memory	Single Chaneel l DDR3 1066/1333/1600MHz，Max support 8G
	Graphic card	Intel HD Graphics
	Sound	Integrated Realtek ALC662 HD
	expansion	1*MINI-PCIE?Connector ，can add wifi/3G?Module (Only supportUSB?signal equipment)
	expansion	1*MINI-SATA?connector，can add ?SSD
Storage	HDD	2.5inch laptop hard disk
	SSD	SSD
	EMMC	32/64/128G（optional ）
function	Display output	HDMI/VGA
	Internet Output	4*Intel I211?Lan Port
	USB	1USB2.0/1USB3.0

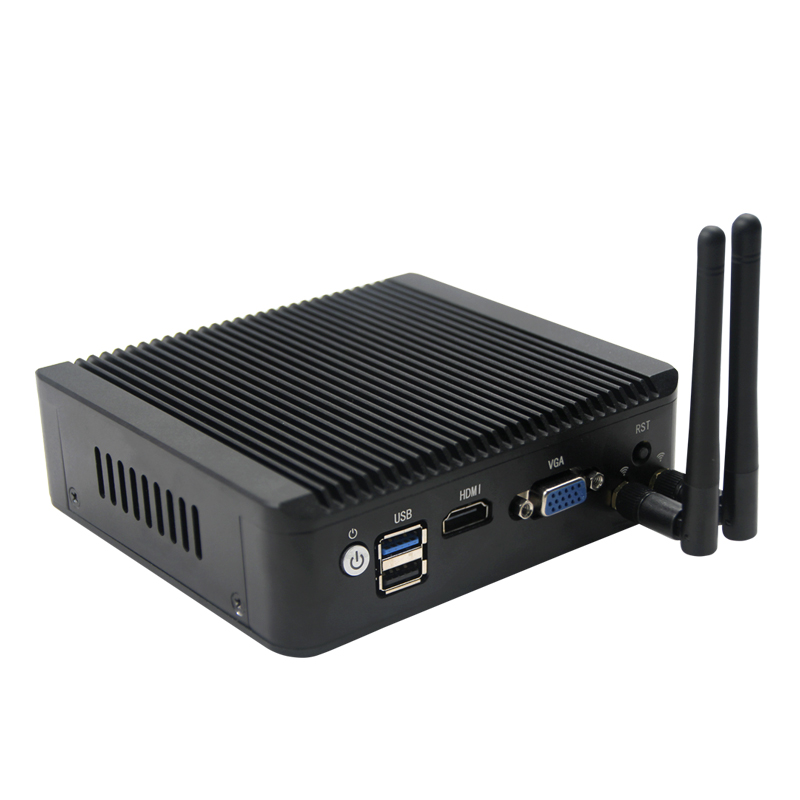

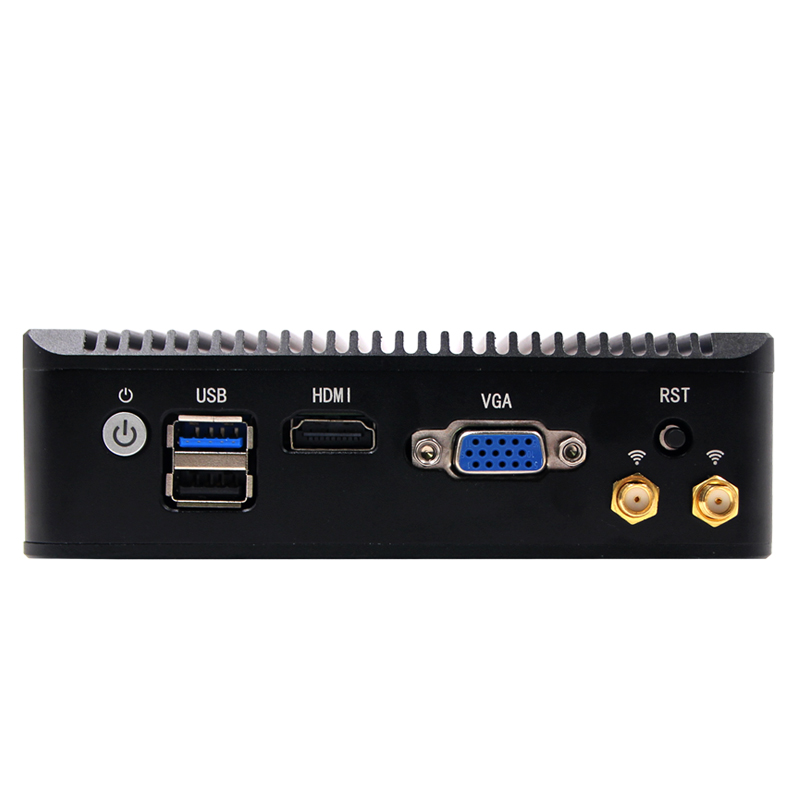

	Front I / O interface	1 * Power switch (with indicator light), 1 * Reset button, 1 * HDMI, 1 * VGA, 2 * USB

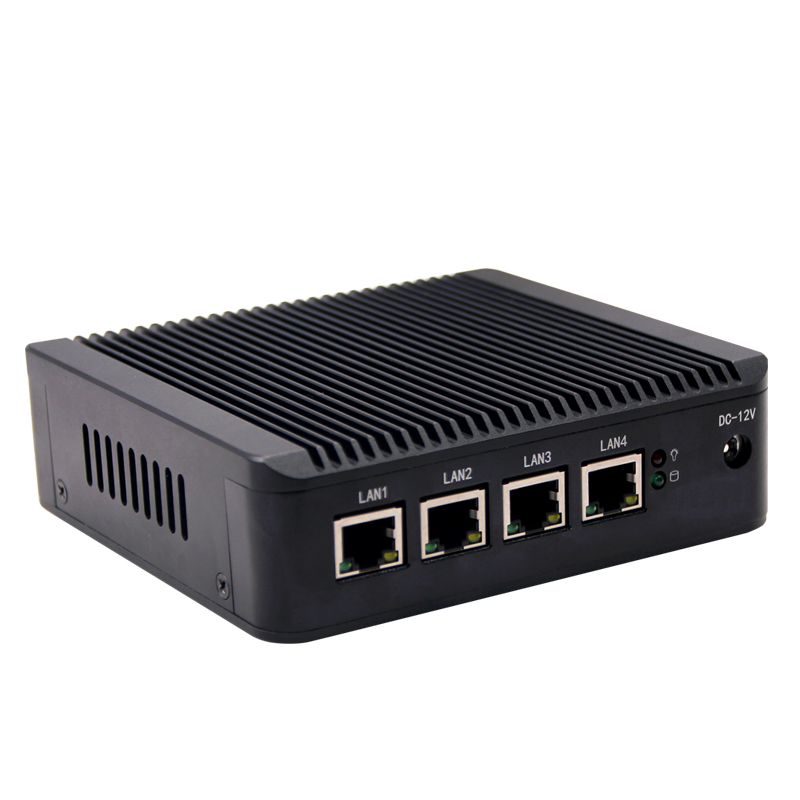

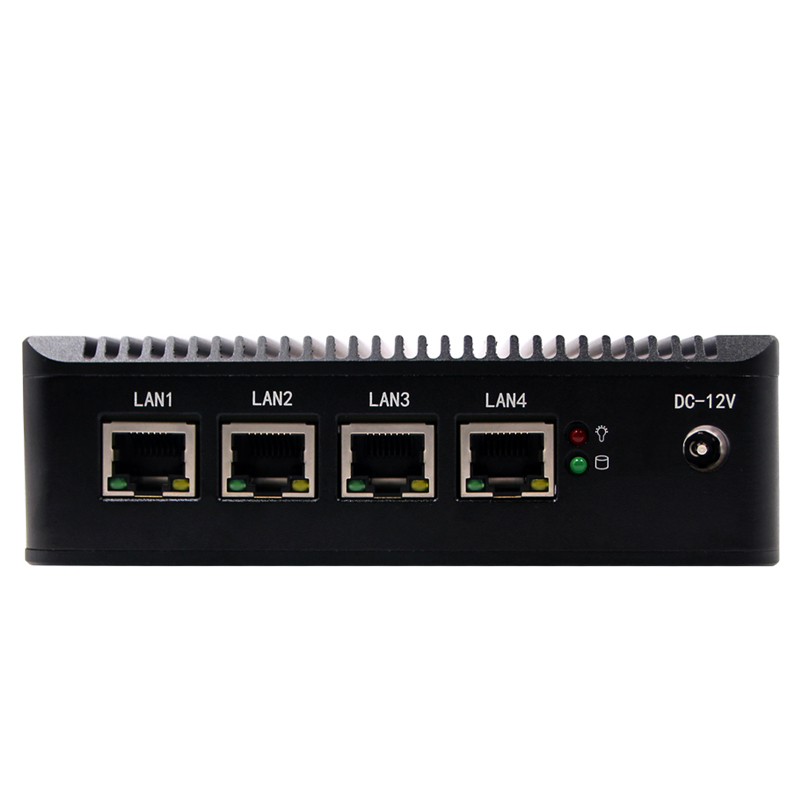

	Rear I / O connector	4 * Intel I211 high-performance Gigabit Ethernet, 1 * power indicator, 1 * hard drive indicator, 1 * DC power supply interface
	Working temperature	-10~60℃
	Operating system	Windows7/Windows 8/Windows8.1 /Windows10/linux
	Power supply	DC12V?power supply

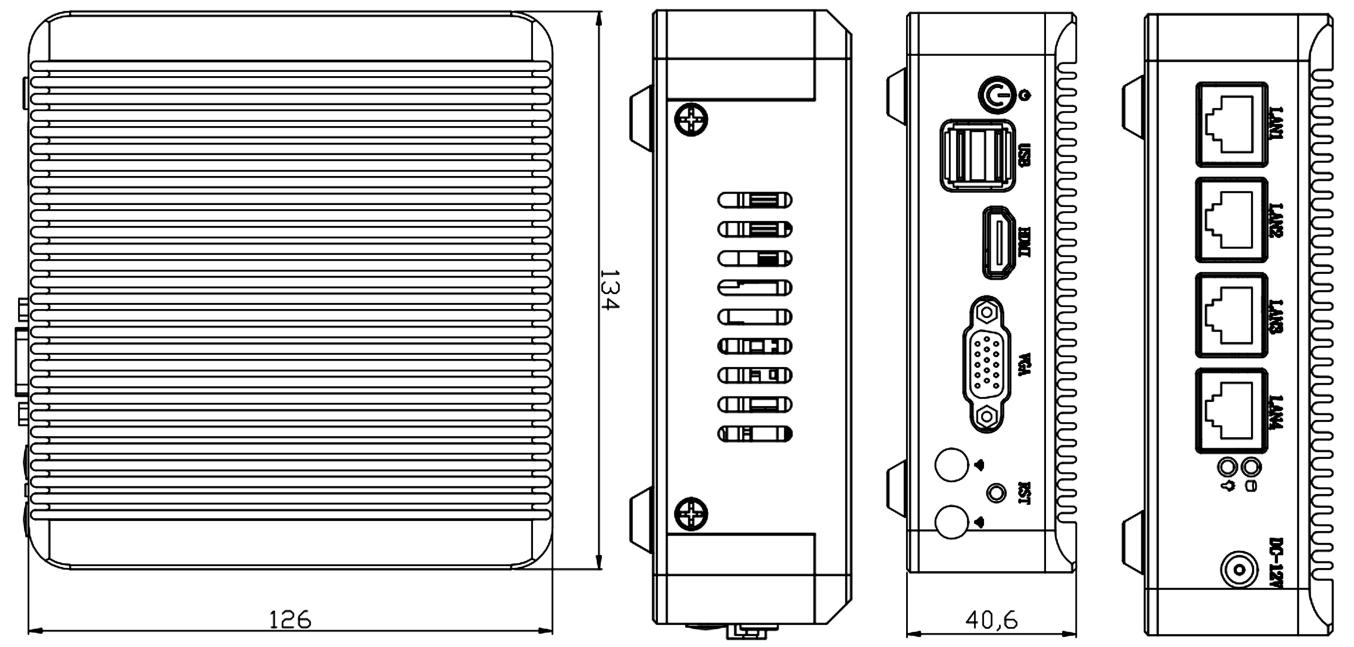

Size?

Ordering Information

Model

description

CPU?optional

?

BT19NA4L-J1900/E3845

Integrated Celeron Baytrail J1900

Quad core 2.0Ghz up to2.4Ghz

DDR3 SODIMM 204 Socket?ram ,max to 8gb

Embedded 32G/64/128G EMMC?chipset （optional）

J1900(quad core）

BT19NA4L-J1800/n286

Integrated celeron Baytrail J1800

Dual core 1.6Ghz up to2.0Ghz

DDR3 SODIMM 204 Socket?ram socket ,max tobe 8gb ram

Embedded 32G/64/128G EMMC?chipset (optional）

J1800（dual core）
