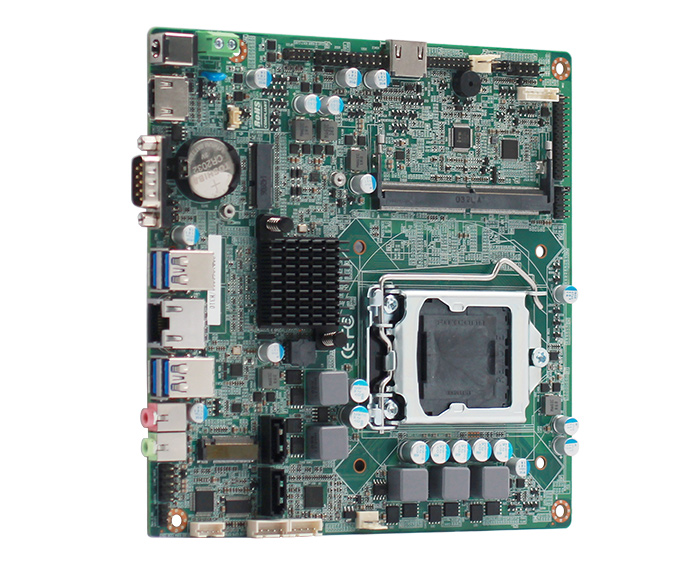

Processor System

CPU

Support Intel 8/9th genneration Core,Pentium,Celeron,serial processor;

CPU PACKAGE

Intel LGA 1151

Chipset

Intel H310

BIOS

EFI BIOS

RAM

Technology Architecture

Single channel DDR4-1866/2133/2400/2666 1.2V ram,MAX Support 32G

Socket

1*DDR4 SO-DIMM ram socket，MAX support 32GB

Video

Graphic controller

Integrated INTEL HD Core Graphics,graphics models related to CPU

Dual LVDS and EDP

LVDSsupport dual channel 24bit output,Max support resolution 1920 x 1200 EDP;Max support resolution 4096*2304@60Hz（LVDS or EDP only can choose one）

HDMI

HDMIsupport MAX resolution 4096*2160@30Hz

Dual Display

LVDS/EDP+ HDMI1,LVDS/EDP+ HDMI2,HDMI1+HDMI2 SYNC or ASYN display

Tripple Display

LVDS/EDP+HDMI1+HDMI2 SYNC or ASYN display

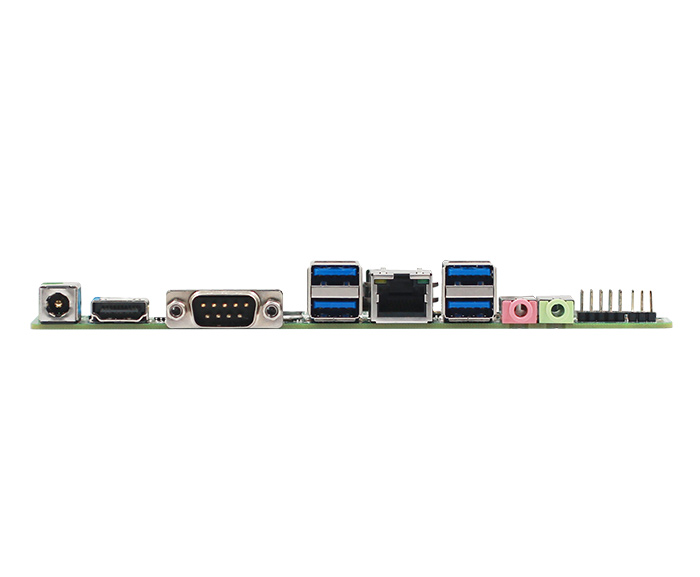

I/O Back Panel

ports

1*DCIN,1*DB9,2*HDMI,1*LAN,4*USB3.1,1*LINE OUT,1*MIC

Network

Controller

1 Realtek RTL8111H,10M/100M/1000Madaptive network card

Audio

Controller

Realtek HD ALC662 Audio decoding (left and right channels + microphone)

Super  I/O

Controller

IT8613E

Hardware monitoring

Watchdog timer

0-255 seconds, provide watchdog routine

Cooler

Aluminum radiator with fan (supports automatic and manual fan speed adjustment)

Input/output interface

USB

2*USB3.0

COM

1*DB9 COM，Suport RS232 or 1*RS485 1X2 2.0 plug pin（Choose one of the two functions, select by changing the resistance and jumper）

PS/2

1*PS/2Pin interface (support PS/2 keyboard and mouse)

GPIO

8 bits, provide routines, freely define input/output, 3.3V@24mA level

Expansion bus

M.2

Support M.2 CNViprotocol WIFI

Storge

SATA

2 standard SATAIII interfaces, maximum transfer rate 6Gb/s

M.2 NVMe/SATA

NGFF_SSD1：suport M KEY 2240/2260/2280 NVMeprotocol or SATA SSD

Power supply

Power type

DC 12V power supply (95W CPU matches with≥180W power supply，65W的CPUmatches with ≥120Wpower supply）

working environmen

working temperature

-20℃ ~ +60℃

Storge temperature

-40℃ ~ +85℃

Operating humidity

0% ~ 90% relative humidity, no condensation

Storage humidity

0% ~ 90% relative humidity, no condensation

Support system

OS

Windows10  Linux

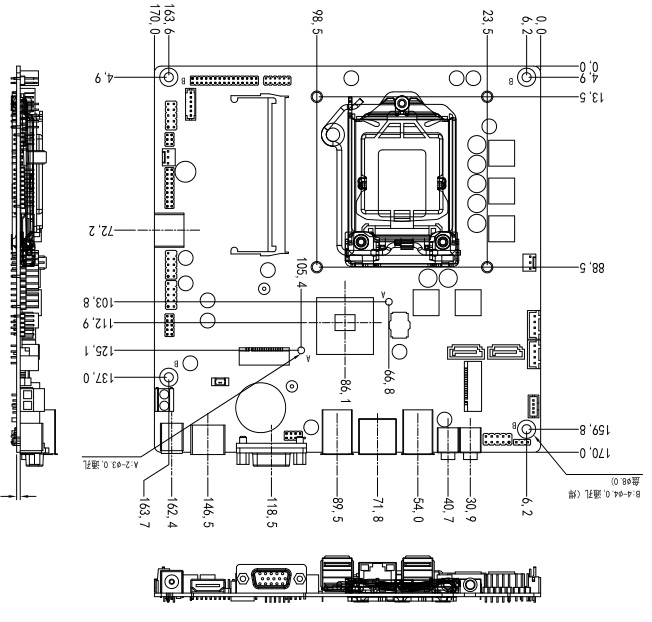

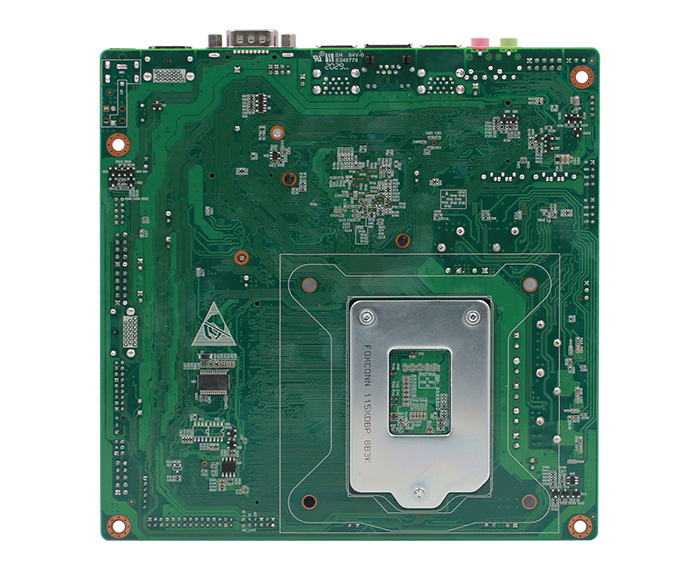

physical dimension

size

170 x 170 mm

N.W

0.5KG

Certification

CE,RoHS,FCC
